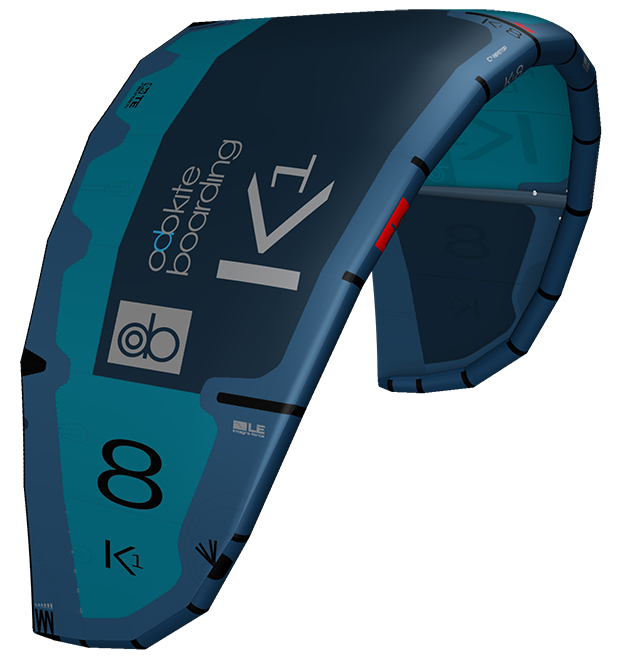

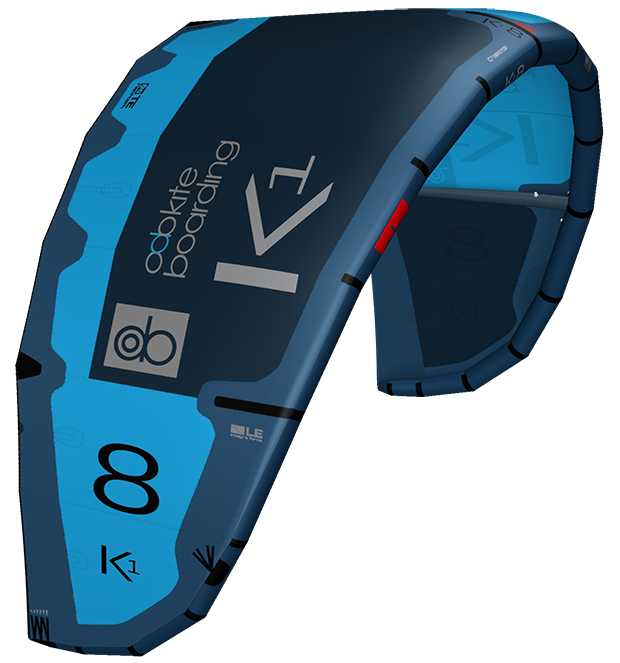

K1 Kite

FREERIDE / FREESTYLE / WAVE

Size

4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12

Description

Odo Kiteboarding K1 is the most versatile kite in the range that, thanks to its hybrid design, will allow you to use it for different purposes. Its intuitive and soft bar feeling combined with a progressive power erogation, high turning speed, top stability, great depower and excellent upwind features make K1 kite suitable for freeride, freestyle and wave riding. K1 kites have been engineered to let you control your unhook pop with the certainty to have the right power at the right time and K1 hang time performance will help you in your hooked tricks as well.

Buy your kite now

size	twin tips kts	surf boards kts	line lenght mt
4	30-42	26-40	22 (25)
5	26-40	24-38	22(25)
6	24-38	22-36	22 (25)
7	22-36	20-34	22 (25)
8	20-34	18-32	22 (25)
9	18-32	16-30	22-25
10	16-30	14-28	22-25
11	14-28	12-26	22-25
12	12-26	10-24	22-25

size

twin tips kts

surf boards kts

line lenght mt

30-42

26-40

22 (25)

26-40

24-38

22(25)

24-38

22-36

22 (25)

22-36

20-34

22 (25)

20-34

18-32

22 (25)

18-32

16-30

22-25

16-30

14-28

22-25

14-28

12-26

22-25

12-26

10-24

22-25

Features

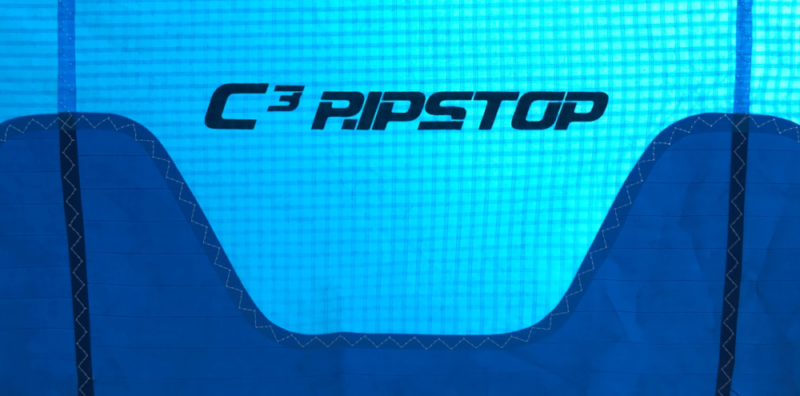

C3 RIPSTOP CANOPY

Introducing the most innovative third generation canopy cloth now available on the market: exclusive to Odo Kiteboarding, designed and manufactured 100% by TECHFIBER SAKAI in Japan, C3 RIPSTOP is made of Toray high tenacity polyester 3 by 3 yarn, processed with high grade resins and high level dyeing techniques. Thanks to the high level manufacturing process the C3 RIPSTOP features a much higher break strength (tensile strength),
lower stretch value and a lighter weight compared to other major fabrics used within the industry: these features increase the canopy cloth robustness and stiffness and help to obtain a better and along the kite life time flying performance. Thanks to these characteristics the kite control is dramatically enhanced as long as its reactivity and turning speed. C3 RIPSTOP features also a more stable coating and a superior PFOA-free water repellency compared to other major fabrics within the industry that makes this kite cloth much more resistant to UV rays degradation and make the kite fabric more durable.

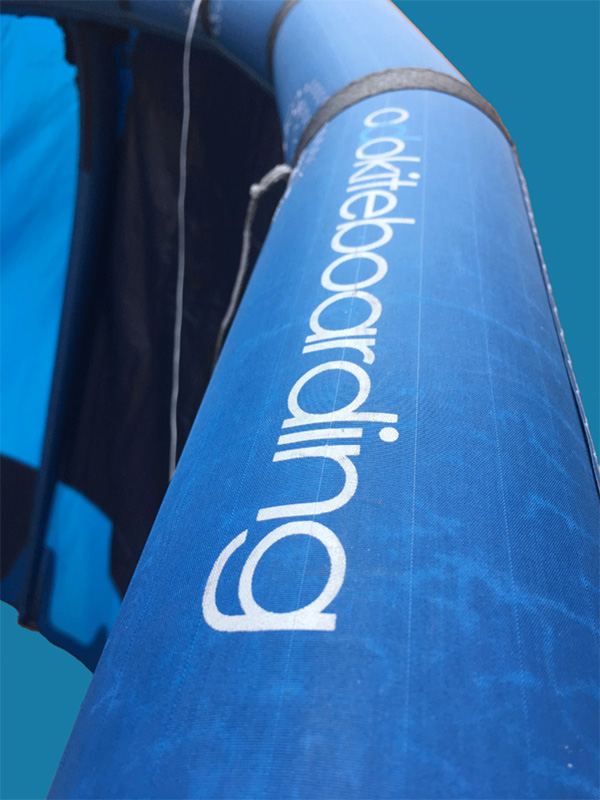

HI-TENACITY LOW WEIGHT DACRON

With its high resistance and light weight features DP 175 Dacron gives strenght in the proper areas while not adding too much weight to the kite.

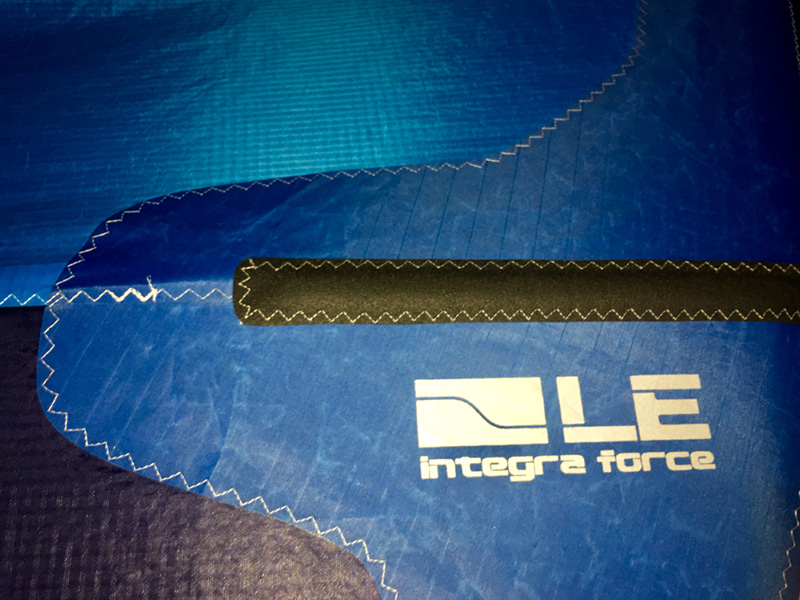

LEADING EDGE INTEGRA FORCE

The protection tape inserts placed along the critical areas of the leading edge ensure a better kite protection when the kite needs to be launched or landed.

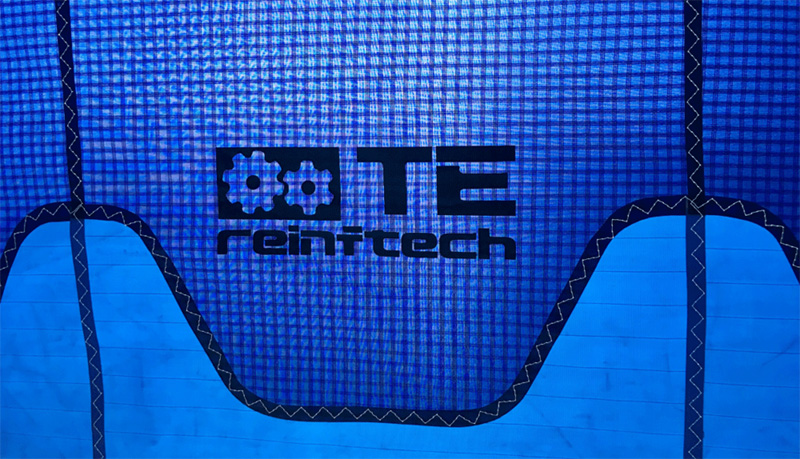

TRAILING EDGE REINFTECH

The Dacron trailing edge reinforced areas make the trailing edge profile stiffer and less prone to flapping. The benefit you will perceive is a longer life for your trailing edge

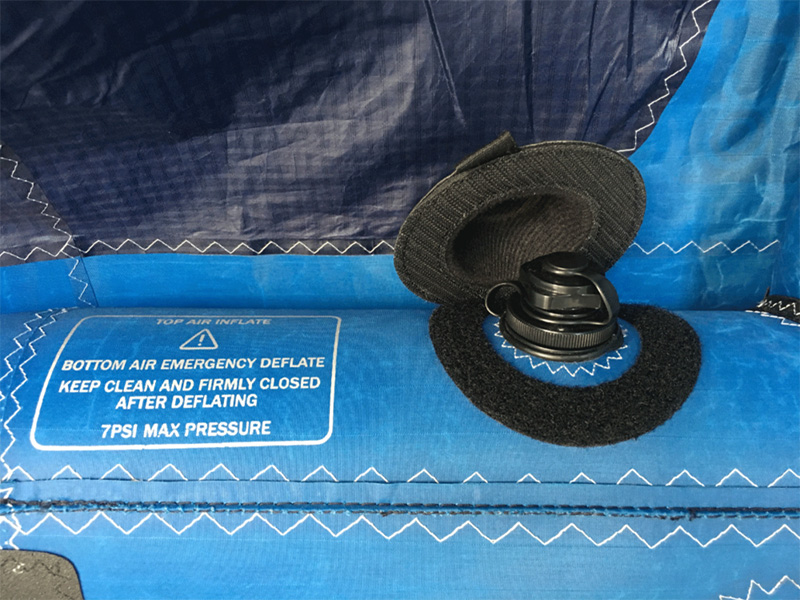

MAX AIR FLOW VALVE

The kite pumping through the wide gauge Max Air Flow Valve which is compatible with all the kite pump noozles available on the market will be easier and quicker.

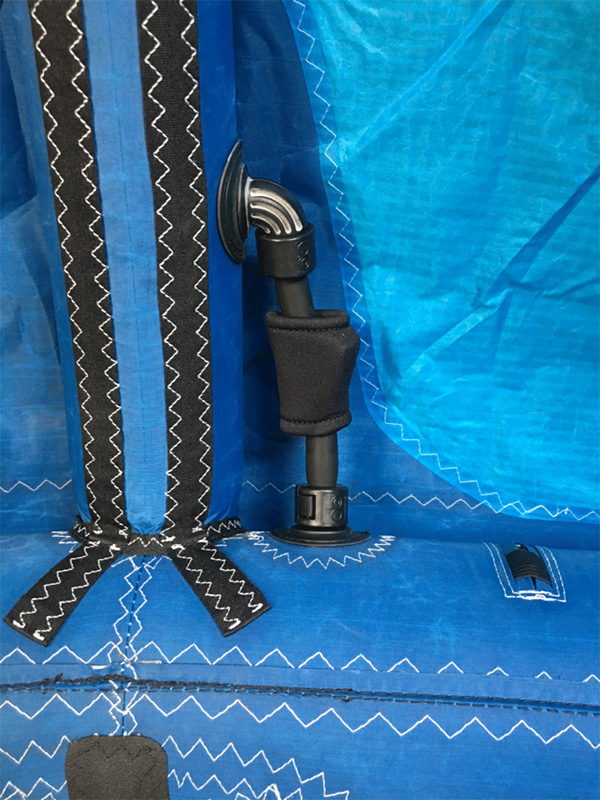

ONE PUMP AIR FLOW SYSTEM

The 10 mm ID (inside diameter) one pump tubes help to inflate and deflate your kite quickly and effortlessly.

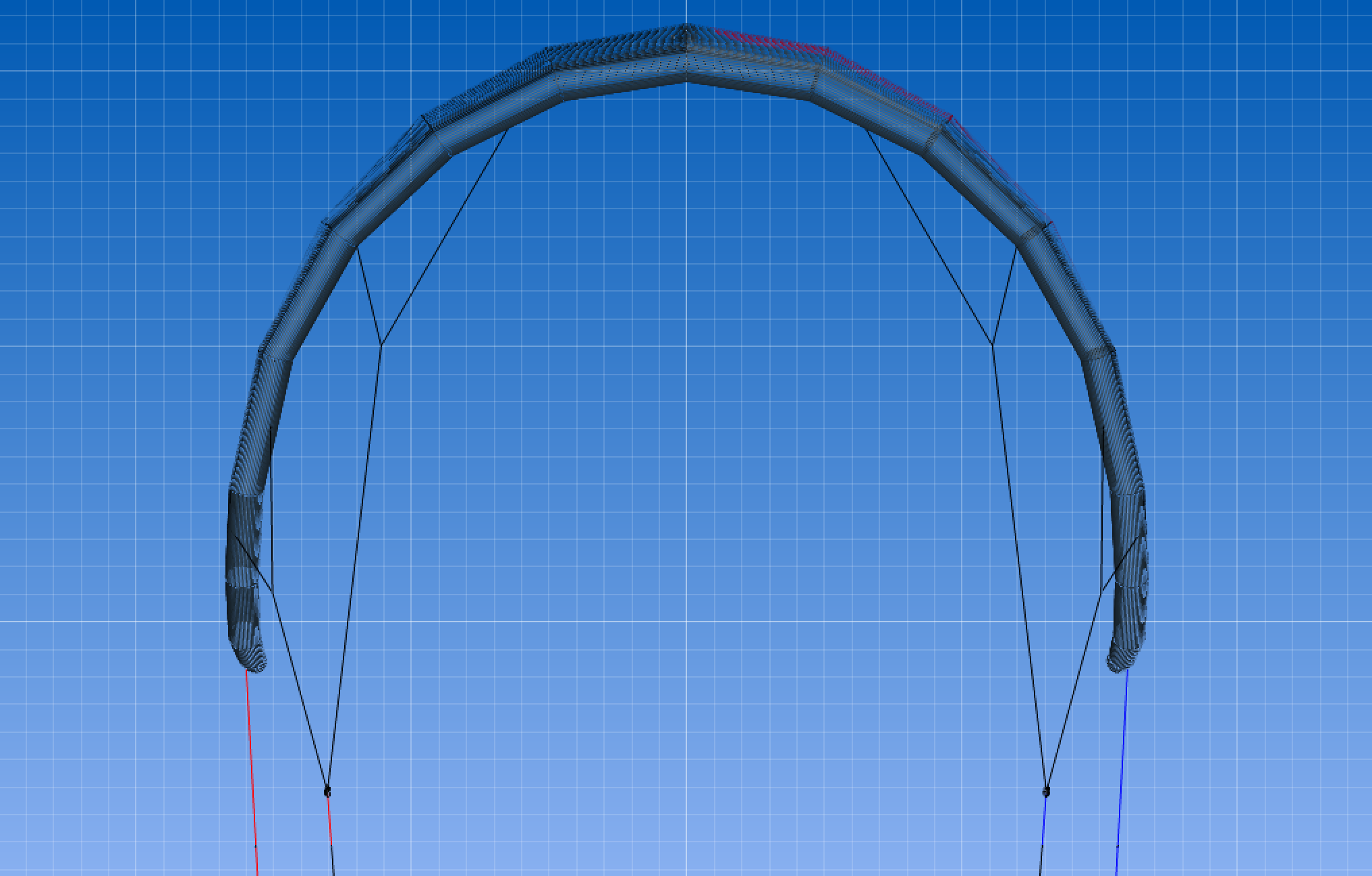

HI-RESPONSIVE BRIDLE DESIGN

The innovative HRBD has short and simplified bridles that help you to have a better and direct feeling with your kite. The system lacks any pulleys and while kitelooping thanks to this feature you will complete the manoeuvre smoothly, without any unwanted extra pull generated by the pulleys.

EVOLUTIVE PROFILE

The profile depth and shape evolve along the airfoil, helping create a fast flying, stable kite with less back stalling. The center sections generate power thanks to a deeper profile, while the flatter profile in the tips minimizes drag and allows a faster kite turning speed.

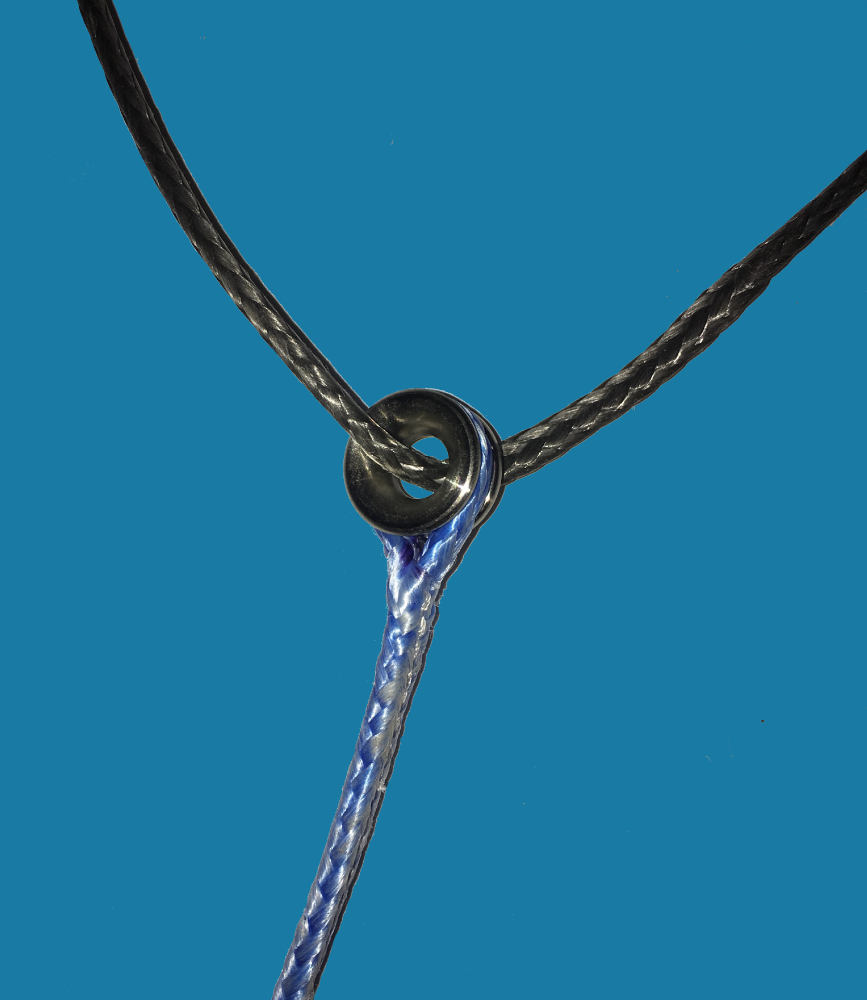

TITANIUM LOW FRICTION RINGS

The light weight – high resistance titanium low friction rings replace the pulleys and will help you to have a smooth kite control, even during more impactful tricks like the kite loops.

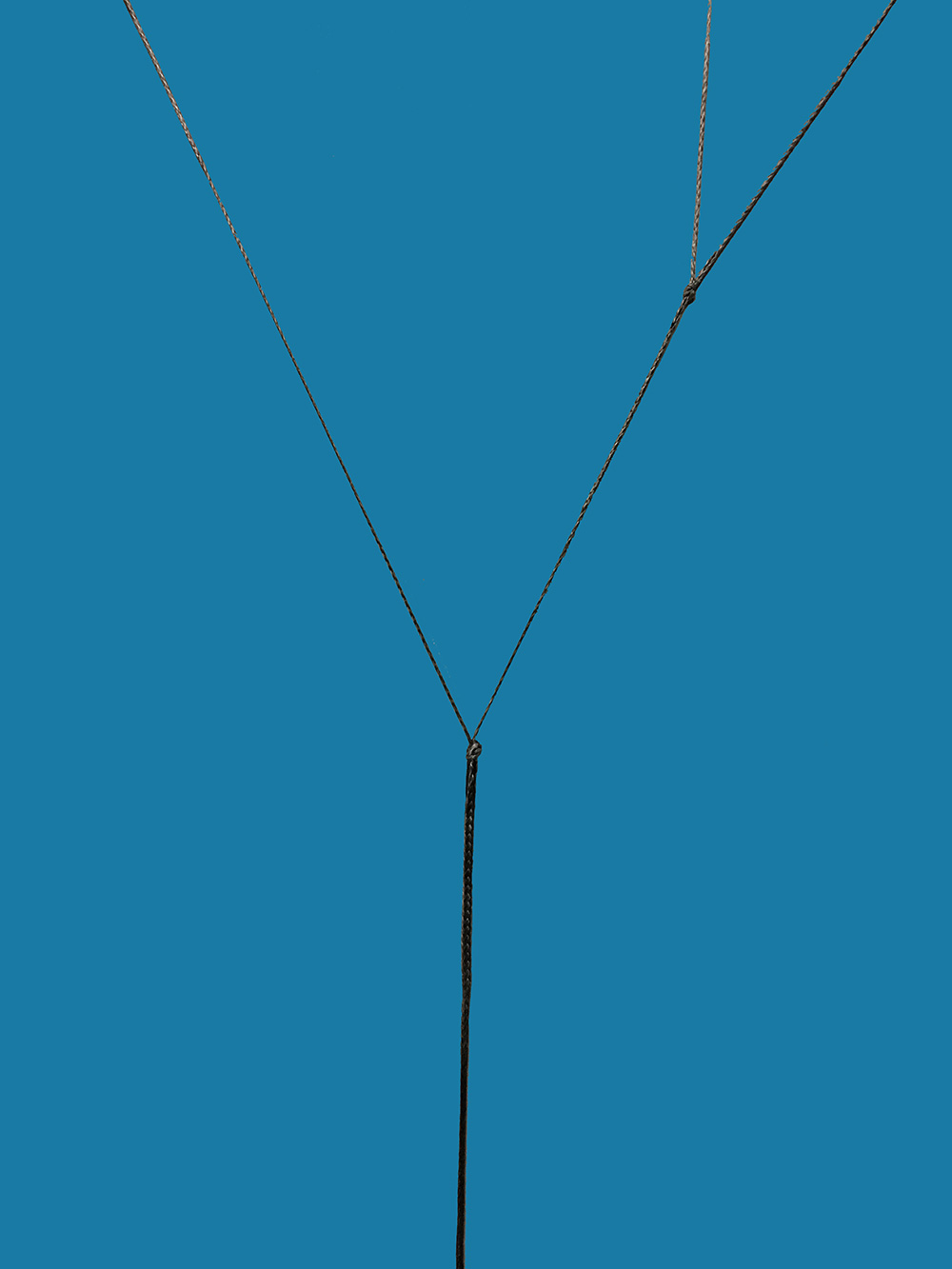

LOW WINDAGE BRIDLES

The windage is the resistance of the bridles dragging against the wind. Odo Kiteboarding thanks to its special high tenacity small diameter bridles allows you to reduce the sag, thus increasing the overall performance of your kite that will gain in speed and in bar control while steering and in any situation.

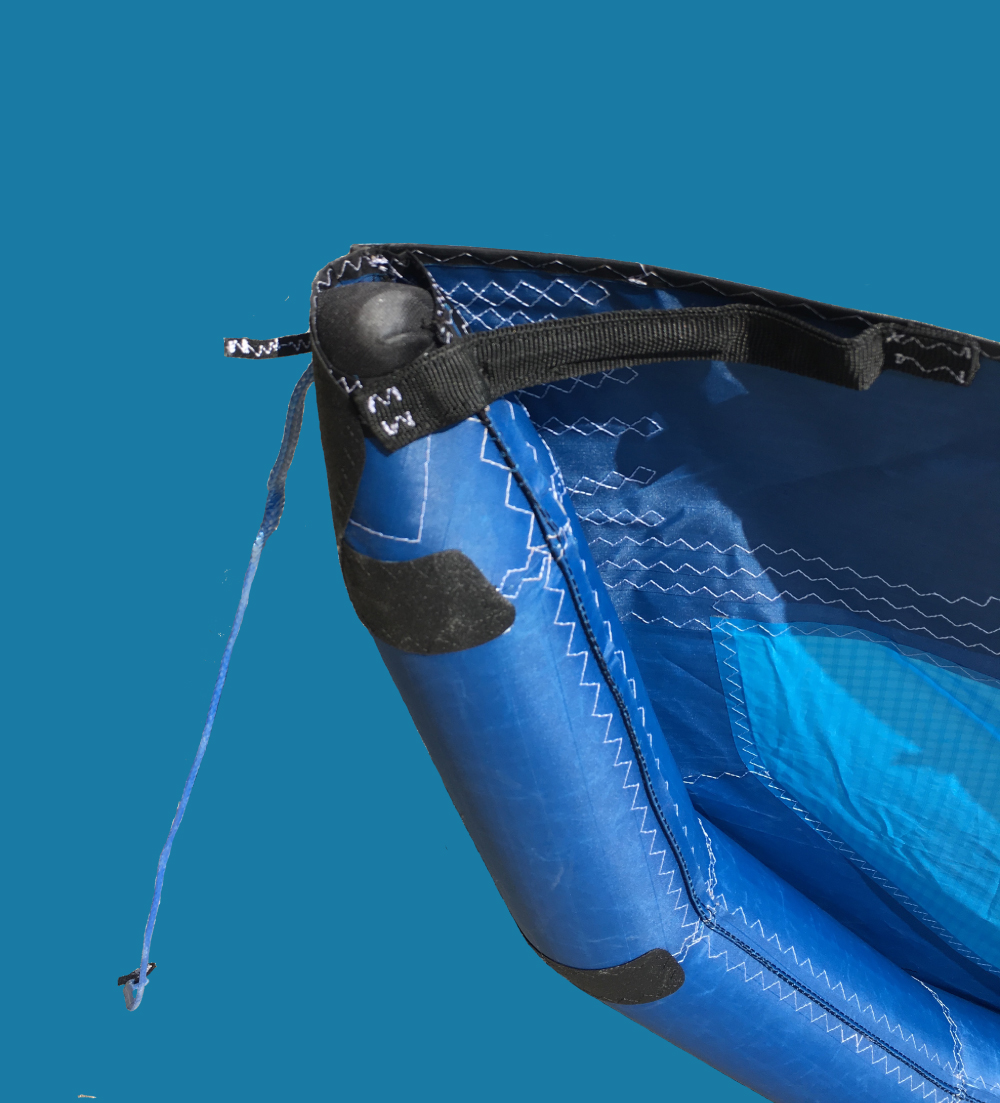

ANTI TANGLING WEBBINGS

Placed on the trailing edge and struts tips the anti tangling tapes will help you to avoid that your lines can get blocked when you need to relaunch quickly and safely or when you are ready to start your session.

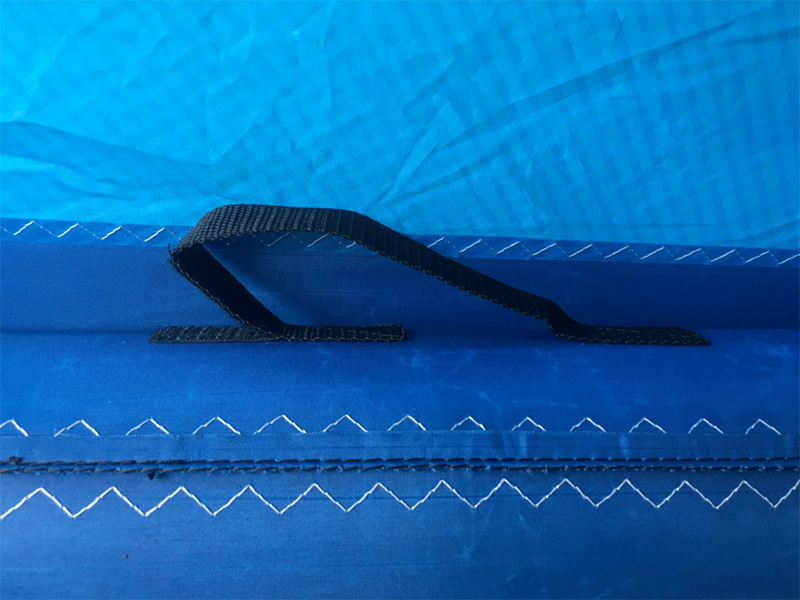

SELF RESCUE HANDLES

A must for your safety, are made with reinforced nylon webbings properly sewed to the kite structure.

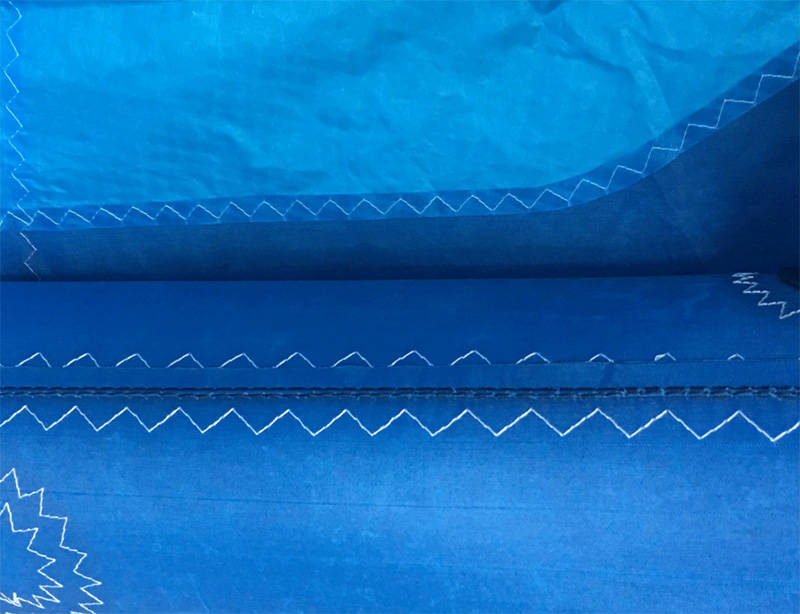

HI-PRECISION CONSTRUCTION

The cut and panes assembly is performed under a continuously verified process to guarantee the correct kite shape. The benefit you can perceive is an excellent flying behaviour of the kite.

TOP QUALITY CONTROL

A complete quality control system guarantees that the quality standards are fully met.

K1 Kite

K1 KITE

FREERIDE / FREESTYLE / WAVE

Size

Description

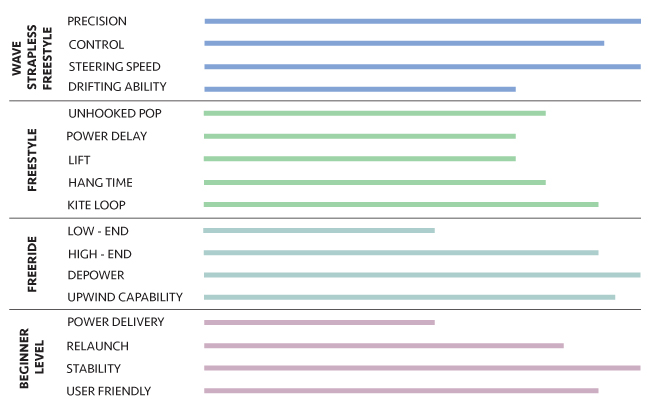

Range of use
